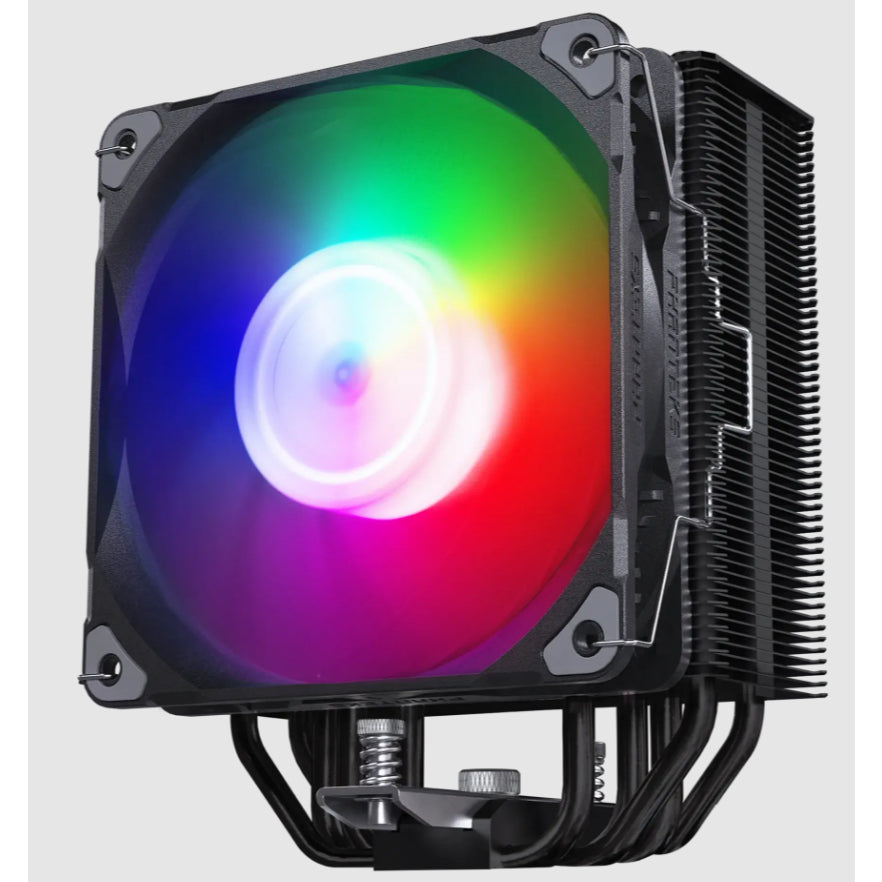

PHANTEKS Polar ST5 DRGB Air CPU Cooler/ Black

Specifications

General

Model No.

PH-TC12ST5_DBK01

UPC Code

886523703112

Color

Black

Material

Copper heat-pipes | Aluminum fins | ABS plastics

Intel Compatibility

LGA 115x | 1200 | 1700

AMD Compatibility

AM4 | AM5

Dimensions

Length x Width x Height

125 x 75 x 154 mm | 4.92 x 2.95 x 6.06 in

Heatsink

Heatsink Dimension

125 x 50 x 154 mm | 4.92 x 1.96 x 6.06 in

Heat Pipe

Sintered 5x Ø 6 mm | Ø 0.23 in

Number of Fins

54

Thermal Paste

4.3 W/m-k Phanteks high performance thermal paste

Fans 1x Included

Fan Model

M25-120 D-RGB PWM

Dimensions

Length x Width x Height

120 x 120 x 25 mm | 4.72 x 4.72 x 0.98 in

Speed

400 ~ 2000 ± 10% RPM

Air Flow

84.26 CFM

Fan Static Pressure

2.67 mm H2O | 0.10 in H2O

Sound Level

35.7 dBA

MTFB

30.000 Hours

PWM Connector

4-Pin Daisy-chain

PWM Cable Length

120 mm | 4.72 in

D-RGB Connector

3-Pin D-RGB Daisy-chain

D-RGB Cable Length

300 + 100 mm | 11.8 + 3.9 in

Extra

Net Weight

766 g | 27.02 oz

Gross Weight

963 g | 33.69 oz

Warranty

5 Years

Scope of Delivery

1x Polar ST5-120 heatsink

1x M25-120 D-RGB fan

Accessory

1x Low noise adapter

1x PH-NDC thermal compound

1x Thermal paste spreader

1x Installation guide

Mounting Hardware

1x Intel back plate for LGA115X | 1200 | 1700

4x Fan wire clips

2x Universal socket bracket

Screws

4x Stand-off for LGA1200 | AM4 | AM5

4x Stand-off for LGA1700

4x AMD AM4 | AM5 screws

4x Intel LGA115X | 1200 | 1700 screws
