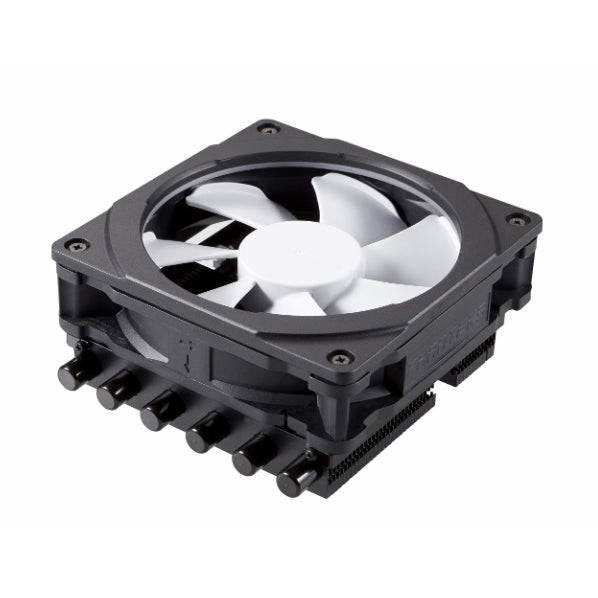

PHANTEKS TC12LS RGB - Low-Profile CPU Air Cooler

The PH-TC12LS from Phanteks is a low-profile heatsink designed for HTPC cases. Requiring only 74mm of vertical height, the PH-TC12LS is a low-profile heatsink suitable for small computer cases. The PH-TC12LS uses six 6mm diameter C-type heat pipes, which can effectively provide thermal conductivity. For better cooling performance, the PH-TC12LS is equipped with Phanteks' new PH-F120MP fan. The new PH-F120MP provides excellent static pressure and airflow through the heatsink. For environments with limited space, the PH-TC12LS is the best choice.

Model: PH-TC12LS_RGB

UPC Code: 886523001447

Material

- Copper (Base and Heat-pipes), Nickel Plated

- Aluminum Cooling Fins with patented P.A.T.S.

Fan Model

PH-F120MP PWM High Static Pressure Premium Fan

Product accessories

- 1x PH-TC12LS

- 1x PH-F120MP PWM High Static Pressure Premium Fan

- 1x SoliSku Mounting kit for Intel and AMD(Stock backplate required)

- 4x Fan Screws

- 1x PH-NDC Thermal Compound

- 1x Halos RGB Fan Frame

- 1x Motherboard RGB Adapter

- 1x Phanteks Case RGB Adapter

- 1x Phanteks PH-TC12LS User’s Manual

Heatsink Dimension (LxWxH) without fan

4.7x4.1x1.9 inches (without fan)

Heatsink Dimension (LxWxH) with Single Fans

4.7x4.7x2.9 inches (with fan)

Heatsink Weight without fan

.7 lbs

Heatsink Weight with fan

1.1 lbs

Package Dimension

7.5x6.5x4.6 inches (LxWxH)

Intel Socket LGA 2011/115X/1366/775

AMD FM1/FM2/AM4/AM3+/AM3/AM2+/AM2 (stock back-plate required)
