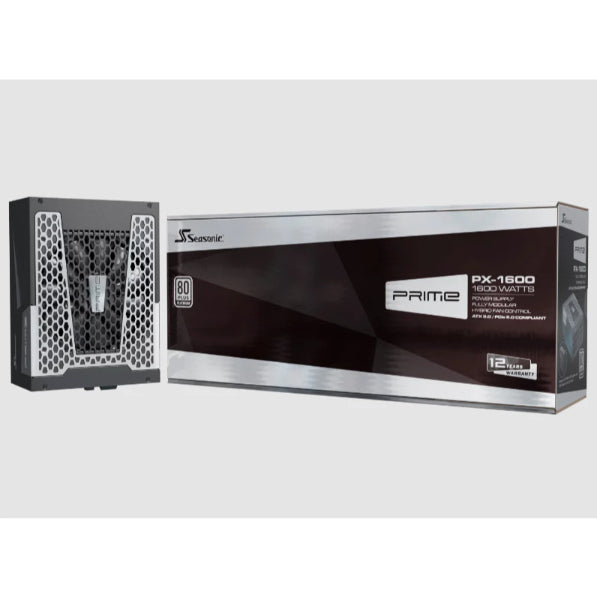

Seasonic PRIME PX-850 / PX-1000 / PX-1600 ATX 3.1 80+ Platinum Fully Modular ATX PSU

PRIME PX ATX 3.0

The Seasonic PRIME PX ATX 3.0 Series is built on top of all the great features of PRIME PX platform with added ATX 3.0 and PCIe 5.0 compatibility. Currently the 1600 W is equipped with native 12VHPWR connectors and Digital Fan Control, and 105°C-rated Japanese electrolytic capacitors guarantee unwavering power delivery and long-term durability. All these qualities make this power supply perfect to welcome the newest high power graphic cards and processors on the market.

Specifications

80PLUS® Platinum

Cybenetics Efficiency Level Titanium

Cybenetics Noise Level A-

Form Factor ATX/EPS

Dimensions 210 × 150 × 86 mm

Fan Information Fan Size 135 mm

Fan Control Digital Hybrid Fan Control

Fan Bearing Fluid Dynamic Bearing

Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information Modularity Fully Modular

Cable type Individual Black Cables with Braided Pattern

PRIME-PX-850

Technical Specifications

80PLUS® Platinum

Cybenetics Efficiency Level TBA

Cybenetics Noise Level TBA

Form Factor Intel ATX 12 V

Dimensions 170 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information Fan Size 135 mm

Fan Control Premium Hybrid Fan Control

Fan Bearing Fluid Dynamic Bearing

Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information Modularity Fully Modular

Cable type Flat black cables

Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

MTBF @ 25 °C, excl. fan 150,000 hours

AC Input Full Range

Protection OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty 12 Years

PRIME-PX-1000

Technical Specifications

80PLUS® Platinum

Cybenetics Efficiency Level ETA A

Cybenetics Noise Level LAMBDA A-

Form Factor Intel ATX 12 V

Dimensions 170 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information Fan Size 135 mm

Fan Control Premium Hybrid Fan Control

Fan Bearing Fluid Dynamic Bearing

Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information Modularity Fully Modular

Cable type Flat black cables

Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

MTBF @ 25 °C, excl. fan 150,000 hours

AC Input Full Range

Protection OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty 12 Years
