● High efficiency with 80 PLUS certification
● 24/7 continuous power output with 40℃ operating temperature
● Class-leading single +12V rail
● Active PFC Circuitry
● PCIe 8pin and PCIe 6pin connector support
● Silent running 120mm fan with 18dBA
● All flat cables design
Product Specifications
Product No.

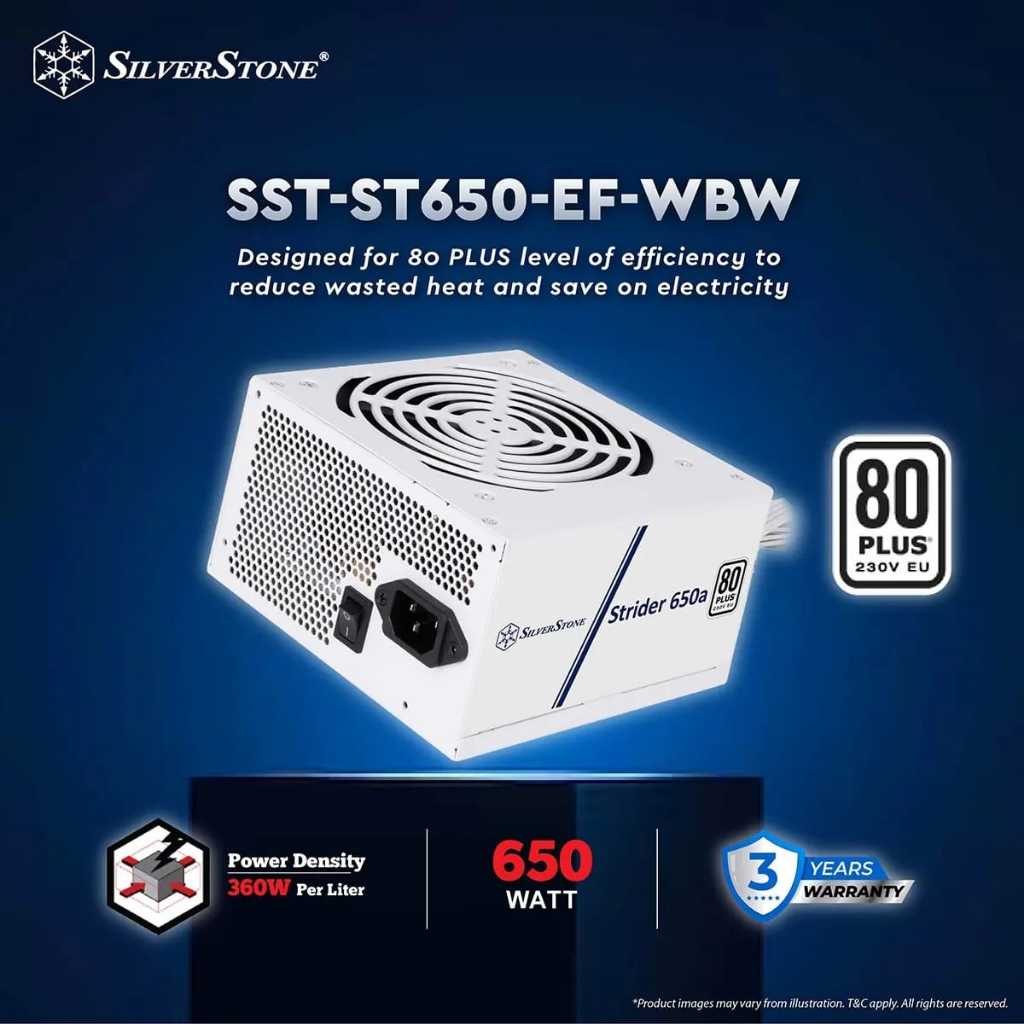

SST-ST650-EF-WBW
Model (safety certification)
SST-ST65F-ES230
Color
White（Lead-Free Paint）
Max. DC Output
650W
Power density
360W per liter
Load Range
Output+3.3V+5V+12V+5VSB-12VMax.(Amps)20A20A50A2.5A0.3APeak (Amps)/////Min.(Amps)0A0A0A0A0ARange (%)±5%±5%±5%±5%±10%Line Reg.(%)±1%±1%±1%±1%±1%Ripple(mVp-p)50mV50mV120mV50mV120mV
Combined +3.3V & +5V
120W
Combined +12V
600W
Input Voltage
180V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
82% ~ 85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
4 x 8 / 6-Pin PCIe connector（"500mm / 150mm" x 2）
4 x SATA connector（"500mm / 150mm" x 2）
3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）
1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）
Cooling System
Single 120mm silent fan
Noise Level
18 dBA minimum
Certification
80 PLUS
Form factor
ATX
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
1.42 kg
Other
GPU Support list
