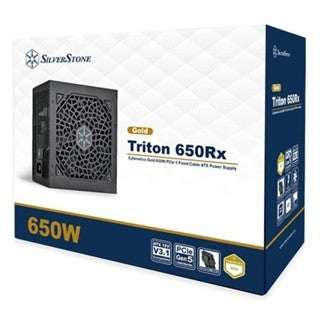

SilverStone Triton 650Rx / 750Rx / 850Rx ATX 3.1 PCIe 5.0 80 PLUS GOLD NON MODULAR POWER SUPPLY PSU

PENTING . IMPORTANT . 注意

KEPADA PELANGGAN YANG DIHORMATI,

SEBELUM MEMBUKA BUNGKUSAN SILA BUAT RAKAMAN VIDEO

BAGI TUJUAN TUNTUTAN KEROSAKAN DAN KEHILANGAN

SEBARANG TUNTUTAN TANPA RAKAMAN TIDAK AKAN DILAYAN.

SEGALA KERJASAMA AMATLAH DIHARGAI

DEAR VALUED CUSTOMER,

BEFORE UNBOXING THE PACKAGE PLEASE MAKE A

VIDEO RECORDING FOR FAULTY AND DAMAGE CLAIM PURPOSES

尊贵的顾客，请在打开包裹之前录制一段视频，

以确保产品损坏的情况有证据。未附带录制视频的索赔将无法受理。

谢谢您的合作

● Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard

● Latest PCIe Gen 5 standard to support up to 2X power excursion

● Silent running 120mm ICB cooling fan

● Black embossed cable design

● Main Japanese electrolytic capacitors

● High efficiency with Cybenetics Gold certification

● 24/7 continuous power output with 40℃ operating temperature

● Compact design with a 140mm depth for easy integration

Product Specifications

Product No.

SST-TR650R-GF

Model (safety certification)

SST-AX0650FCGD-A

Color

Black (lead-free paint)

Max. DC Output

650W

Power density

359.9W/L

Load Range

Output+3.3V+5V+12V1+5VSB-12VMax.(Amps)18A18A54.1A3.0A0.3AMin.(Amps)0A0A0A0A0ARange (%)±5%±5%±5%±5%±10%Line Reg.(%)±1%±1%±1%±1%±1%Ripple(mVp-p)50mV50mV120mV50mV120mV

Combined +3.3V & +5V

100W

Combined +12V

649W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.9 at full load）

Efficiency

87% ~ 89% overall efficiency

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection

Over current protection

Over voltage protection

Short circuit protection

Under voltage protection

Over Temperature protection

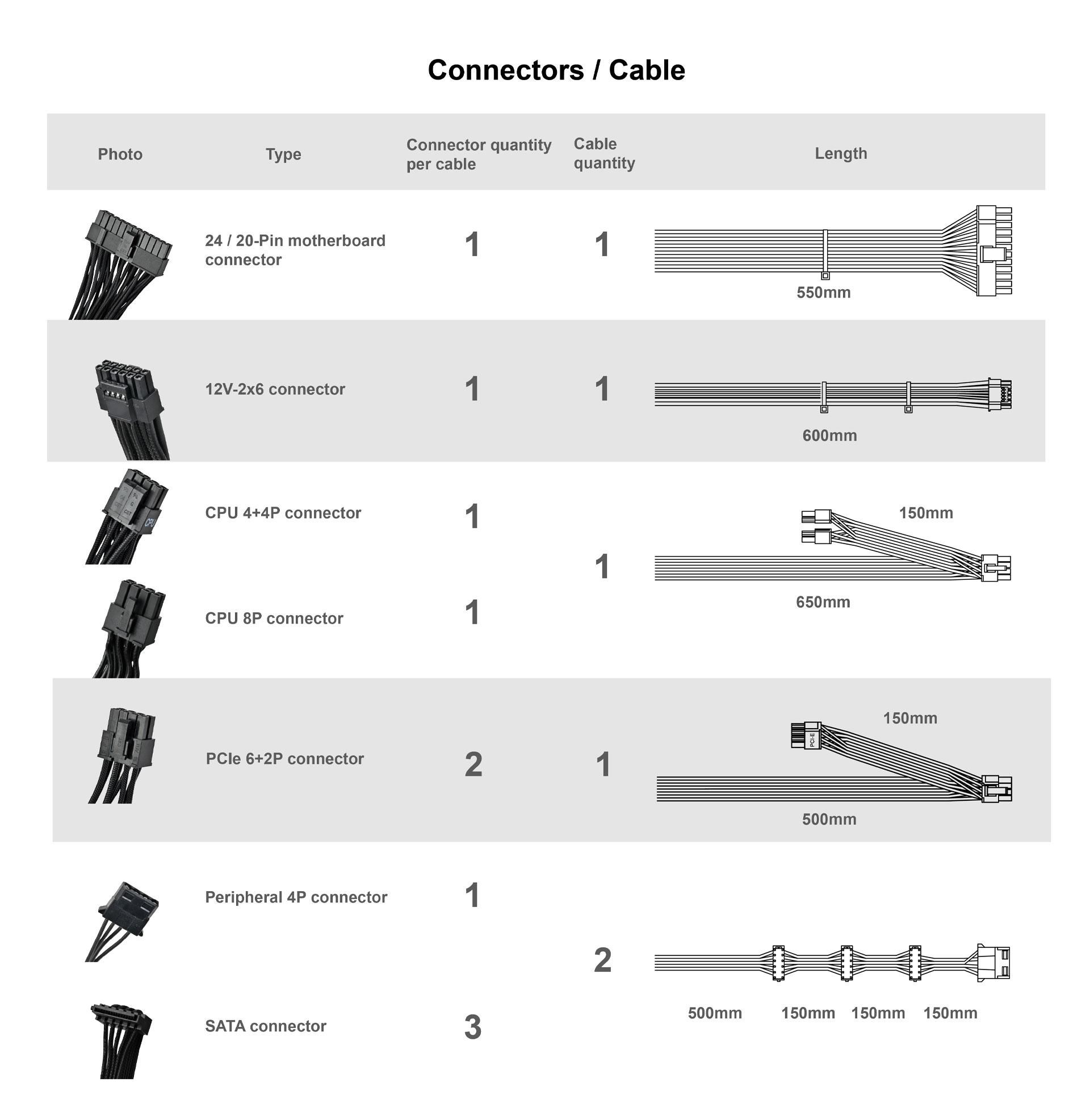

Connectors

1 x 24 / 20-Pin motherboard connector

2 x 8 / 4-Pin EPS / ATX 12V connector

1 x 12+4-Pin 12V-2x6 connector

2 x 8 / 6-Pin PCIe connectors

6 x SATA connector

2 x 4-Pin Peripheral connector

Cooling System

Single 120mm ICB bearing fan

Noise Level

18 dBA min.

Certification

Cybenetics Gold

Form factor

ATX (PS2)

Dimension

150mm (W) x 86mm (H) x 140mm (D)

5.91" (W) x 3.39" (H) x 5.51" (D)

Weight

1.48 kg
