FEATURES
Simple design mirror can present a mirror like reflection effect
Exclusive in luminous mode and motherboard synchronization function
The world’s one and only independent dual control interface
Using addressable RGB LED module
Leading industry with largest proportion of luminous area
Taiwan Utility PATENT (number: M583110)

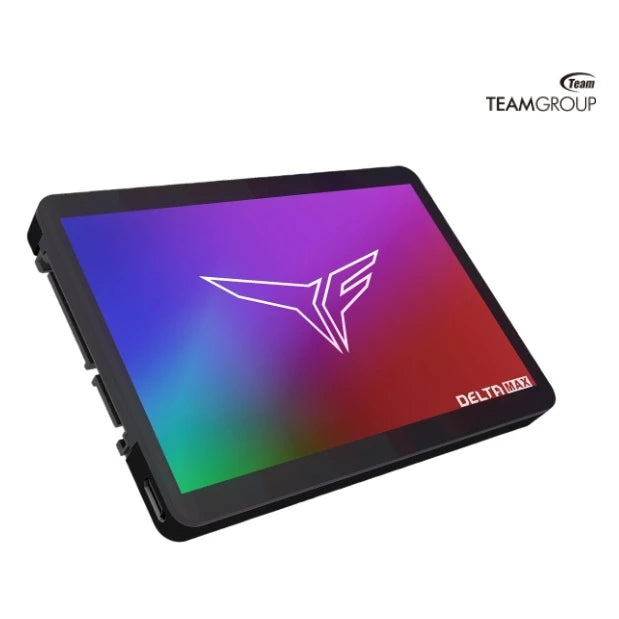

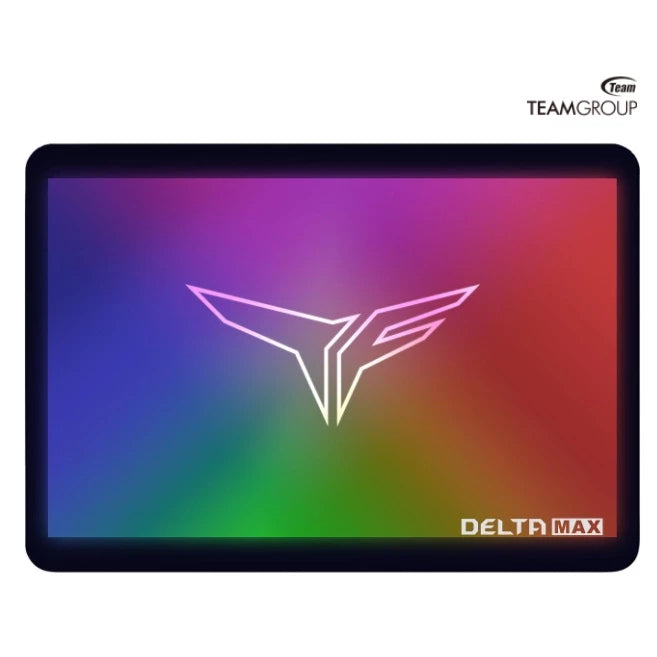

Beautiful magic mirror
With largest full mirror sputtering process, it presents unreal lighting effects. It’s the top choice for DIY enthusiasts and gamers when it comes to SSD.
Smart lighting effect switch
When gamer is installing a non-RGB motherboard, it can be presented through the included USB 2.0 9pin connector.
It has built-in water flowing lighting with RAINBOW mixed color effect[1]
When installing an RGB motherboard, the customized RGB gaming style can be presented by connecting the included 5V 3pin connector and the motherboard software[2].
Stylish mirror with outstanding performance
Having 2.5” with 9.5mm in thickness, it can be installed in all types of gaming cases.
With the SATA III 6Gbps interface, the maximum read speed is up to 560MB/s and it provides 1TB of high capacity for gaming fanatics to choose from.
3D tough protection
The 3D NAND flash memory chip is durable, shockproof and able to offer comprehensive solid protection for the data, so gamers can enjoy the game without any worries.
Smart optimization
Built-in smart algorithm management mechanism
T-FORCE DELTA MAX SSD connection method
There are two ways to control DELTA MAX RGB SSD light effect. According to the corresponding light control source, only one kind of cable can be used for each mode

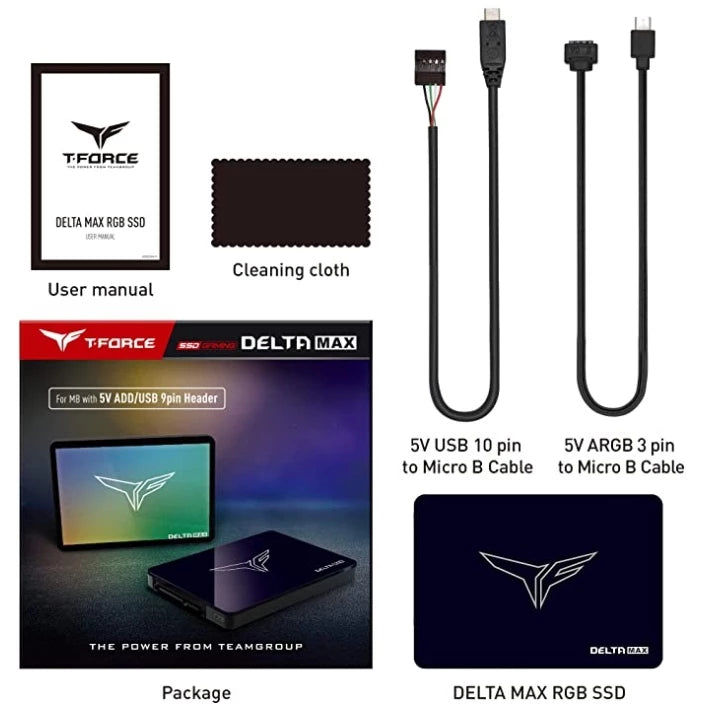

• Sync mode uses 5V ARGB 3 pin to Micro B Cable
Use 5V ARGB 3 pin to Micro B Cable connect DELTA MAX
• Initial Rainbow light effect uses USB 10 Pin to Micro B cable
Use USB 10 pin to Micro B Cable connect DELTA MAX(MB 9 pin header)
T-FORCE DELTA MAX SSD supports various kinds of controlled software
T-FORCE DELTA MAX SSD supports ASUS Aura Sync / GIGABYTE RGB Fusion 2.0 / MSI Mystic Light Sync / ASROCK-Polychrome Sync software[3]. These lightning controlled software allows gamers to control lighting effects and lighting synchronization with T-FORCE DELTA MAX SSD. It creates a unique, dazzling color aesthetics and offers a brilliant RGB system!
Model DELTA MAX SSD
Interface SATA Rev. 3.0 (6Gb/s) –
With Backwards Compatibility to SATA Rev. 2.0
Capacity 250GB / 500GB
Voltage DC +5V
Operation Temperature 0°C ~ 70°C
Weight 78g
Dimensions 100(L) x 69.85(W) x 9.5(H)mm
OperatingSystem Windows 10 / 8.1 / 8 / 7 / Vista, MAC OS 10.4 or later, Linux 2.6.33 or later
MTBF 1000000 hours
Terabyte Written
250GB / >60TB
500GB / >120TB
Performance ATTO / Crystal Disk Mark:
250GB Read: 560MB/s ; Write: 500MB/s
500GB Read: 560MB/s ; Write: 510MB/s
IOPS:
250GB 4K Random Read/Write: 90K/75K IOPS Max
500GB 4K Random Read/Write: 90K/80K IOPS Max
Warranty 3-year limited warranty
