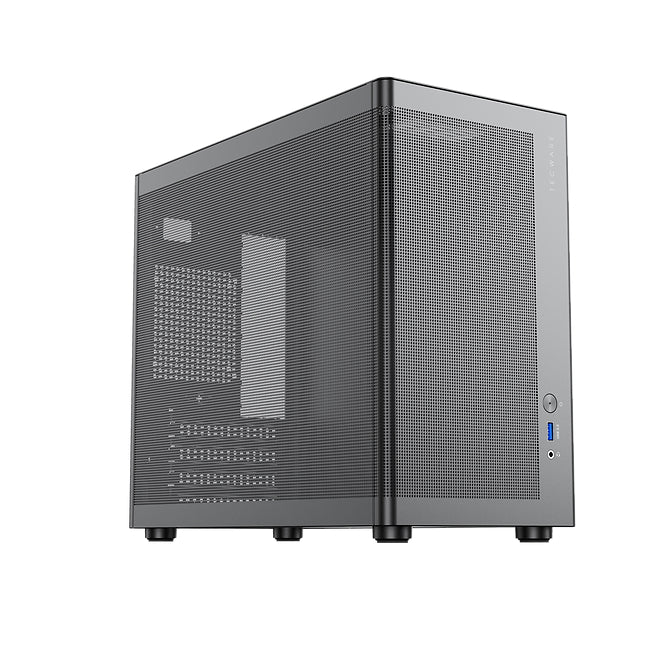

TECWARE Fusion Air M2 / AIR 2 BLACK Hybrid Small Form Factor Chassis Matx Case

FUSION AIR M2

I/O

Super Speed USB 3.0 x 1

HD Audio x 1



BAYS

1x 3.5" HDD

1x 2.5" SSD

4x PCIe slots



FAN SUPPORT

Rear: up to 1x 80mm / 90mm

Bottom: up to 2x 120mm

up to 1x 120mm with HDD installed

Top: 2 x 120mm (included)



HARDWARE CLEARANCE

mATX / ITX - Motherboard

ATX / SFX - Power Supply

280mm Max GPU Length

140mm Max CPU Cooler Height

150mm Max PSU Length



SIZE

Dimensions: L350*W168*H302mm

*********************************************

FUSION 2 AIR

I/O

Super Speed USB 3.0 x 02

USB Type-C x 01 + HD Audio



BAYS (drives share position with fans)

Top: up to 2x HDD

Bottom: up to 3x SSD / 2x HDD

5x PCIe slots



FANS (fans share position with drives)

Front: 1 x 120mm

Rear: 1 x 120mm (included)

Bottom: up to 3x 120mm / 2x 140mm

Top:

2 x 120mm (included)

up to 3 x 120mm / 2 x 140mm



HARDWARE CLEARANCE

mATX / ITX - Motherboard

ATX / SFX - Power Supply

355mm Max GPU Length

166mm Max CPU Cooler Height

160mm Max PSU Length



SIZE & WEIGHT

Dimensions: L391*W205*H325mm
