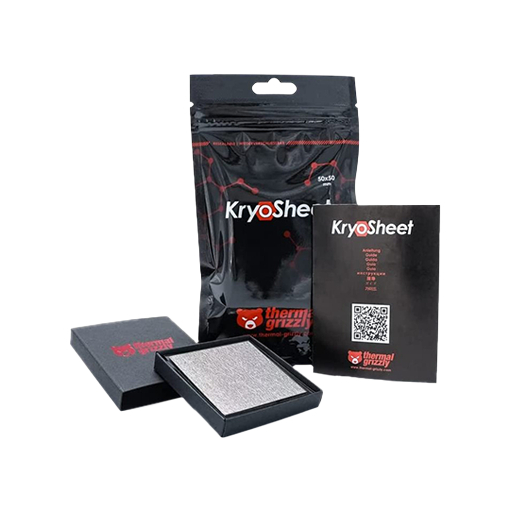

The graphene thermal pads of the Thermal Grizzly KryoSheet series can be used as an excellent alternative for thermal compounds from the higher performance segment. Similar to the Carbonaut pads, they have an adaptable surface with very high thermal conductivity. Compared to Carbonaut pads, KryoSheet offers a significantly higher thermal conductivity as a high-end product.
This increased thermal conductivity is based not only on the choice of material, but on the innovative manufacturing process. KryoSheet contains no liquid components and is therefore not subject to the usual aging that is the case with traditional thermal grease. Drying out is not possible.
● Outstanding thermal conductivity
● Simple application
● Consistently high performance
● Extreme longevity
● Attention: Electrically conductive! Note instructions!
operation area
rating
thermal conductivity
*****
Sub Zero overclocking
*****
overclocking
*****
water cooling
*****
air cooling
*****
Silicone sensitive applications
*
KryoSheet is available pre-assembled in various CPU/GPU standard sizes, e.g.:
Size
CPU/GPU
24x12mm
Intel Mobile CPUs
25x25mm
Nvidia RTX 2080, RTX 3060 GPUs
29x25mm - Compatibility
Nvidia GPUs:
RTX 4090
RTX 3080, RTX 3080 ti, RTX 3090, RTX 3090 ti
RTX 2070 Super, RTX 2080, RTX 2080 Super
AMD GPUs:
RX 7900 XT, RX 7900 XTX
RX 6800, RX 6800 XT, RX 6900 XT, RX 6950 XT
Intel GPUs:
Arc A750, Arc A770
33x33mm
AMD Socket AM5 CPUs
38x38mm
AMD Socket AM3(+), AM4, Intel Socket 1700, 2066, 2011 CPUs
50x50mm
Intel Socket 3647, 4677 CPUs, Custom Cut
Technical specifications
Thickness
0.2mm
Temperature
-250°C / +150°C
