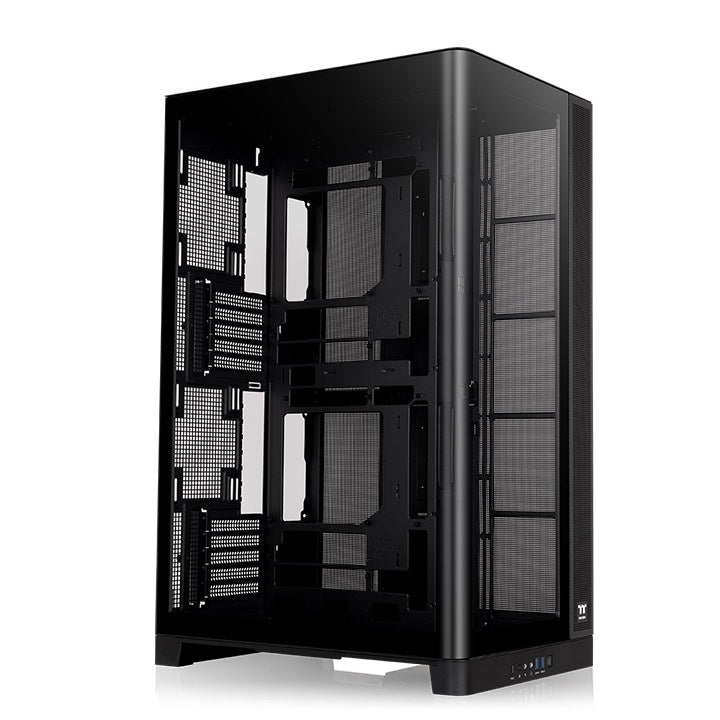

Thermaltake CAPO X Dual System mATX Curved Glass Chassis Black / Snow

PENTING . IMPORTANT . 注意

KEPADA PELANGGAN YANG DIHORMATI,

SEBELUM MEMBUKA BUNGKUSAN SILA BUAT RAKAMAN VIDEO

BAGI TUJUAN TUNTUTAN KEROSAKAN DAN KEHILANGAN

SEBARANG TUNTUTAN TANPA RAKAMAN TIDAK AKAN DILAYAN.

SEGALA KERJASAMA AMATLAH DIHARGAI

DEAR VALUED CUSTOMER,

BEFORE UNBOXING THE PACKAGE PLEASE MAKE A

VIDEO RECORDING FOR FAULTY AND DAMAGE CLAIM PURPOSES

尊贵的顾客，请在打开包裹之前录制一段视频，

以确保产品损坏的情况有证据。未附带录制视频的索赔将无法受理。

谢谢您的合作

More Information

P/N

CA-12D-00S1WN-00

Series

CAPO

CASE TYPE

Dual System Case

Dimension (H x W x D)

691 x 305 x 448 mm

(27.21 x 12.01 x 17.64 inch)

PANEL

4mm Tempered Glass x 1

MATERIAL

SPCC

COOLING SYSTEM

N/A

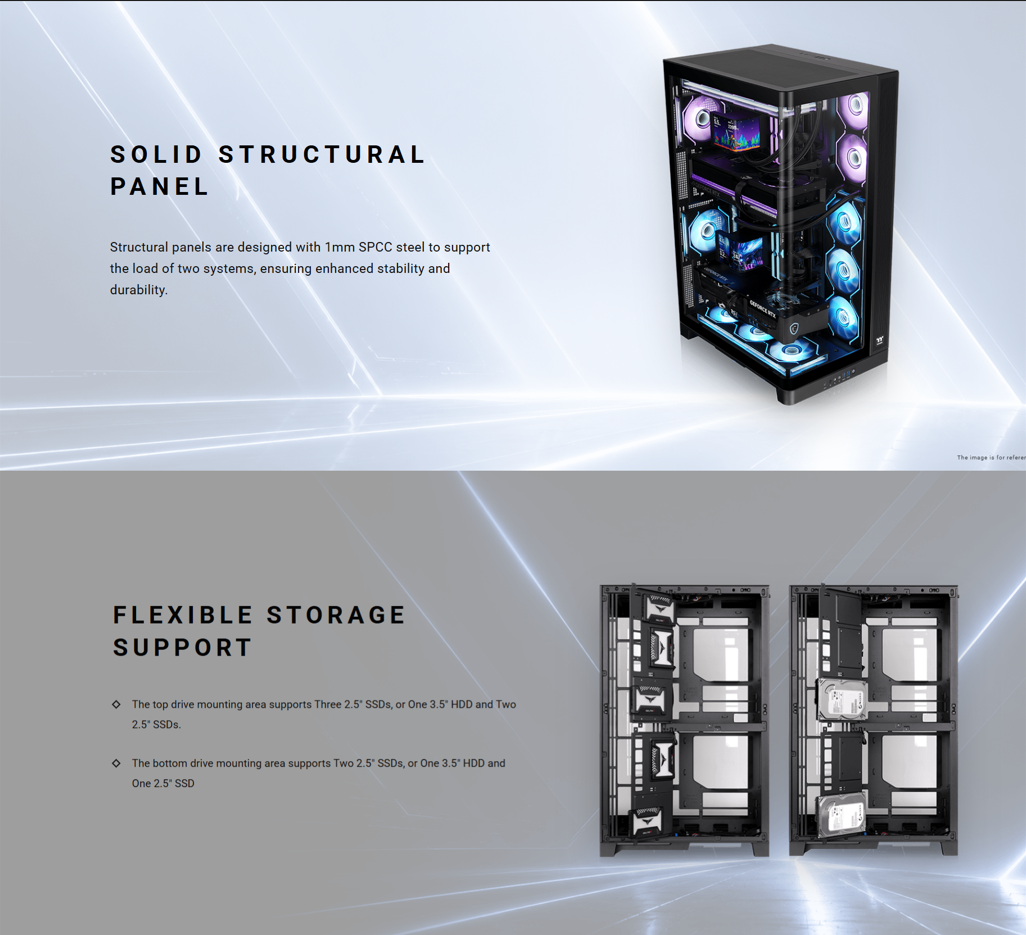

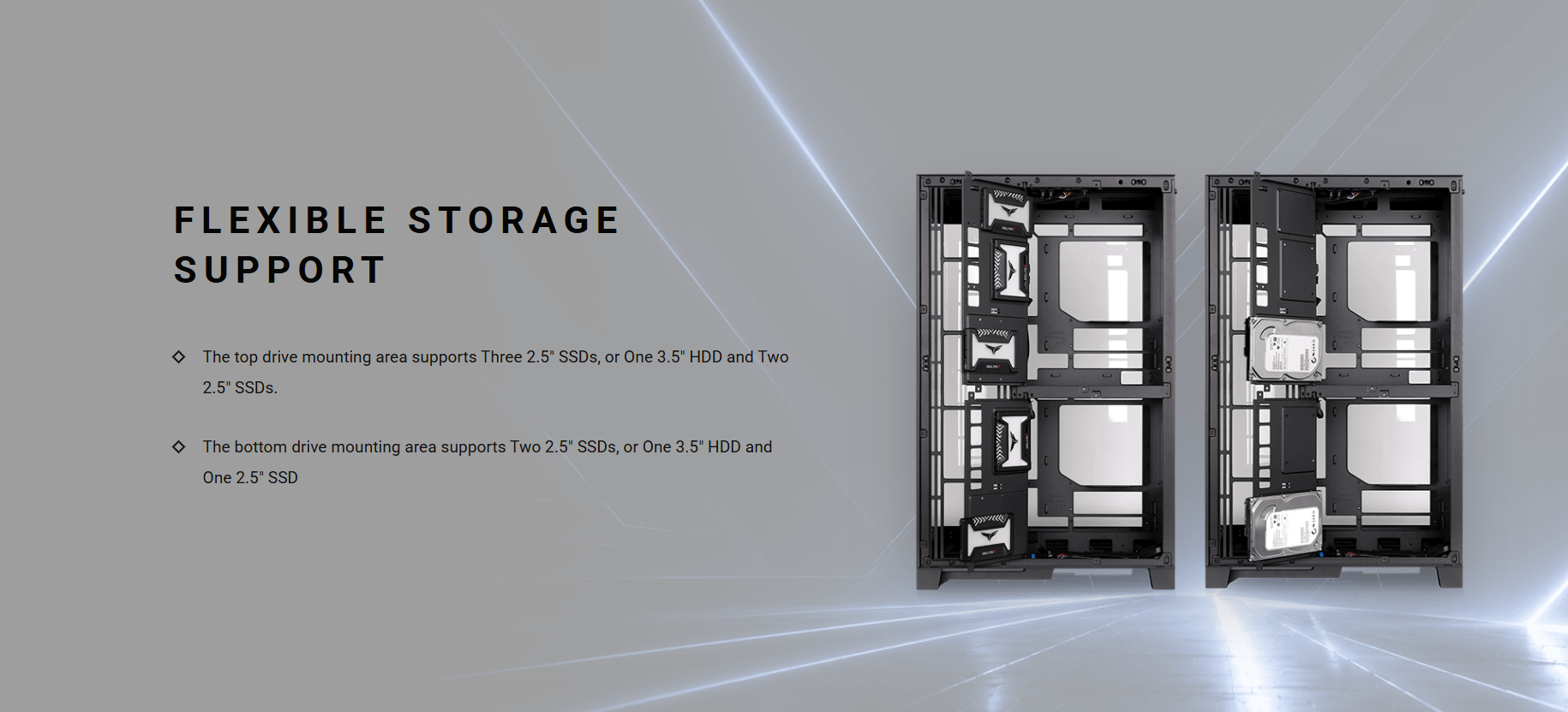

Drive Bays

Upper (3 x 2.5” or 1 x 3.5” + 2 x 2.5”), Lower (2 x 2.5" or 1 x 3.5” + 1 x 2.5”)

EXPANSION SLOTS

10 Slots (5 for Upper / 5 for Lower)

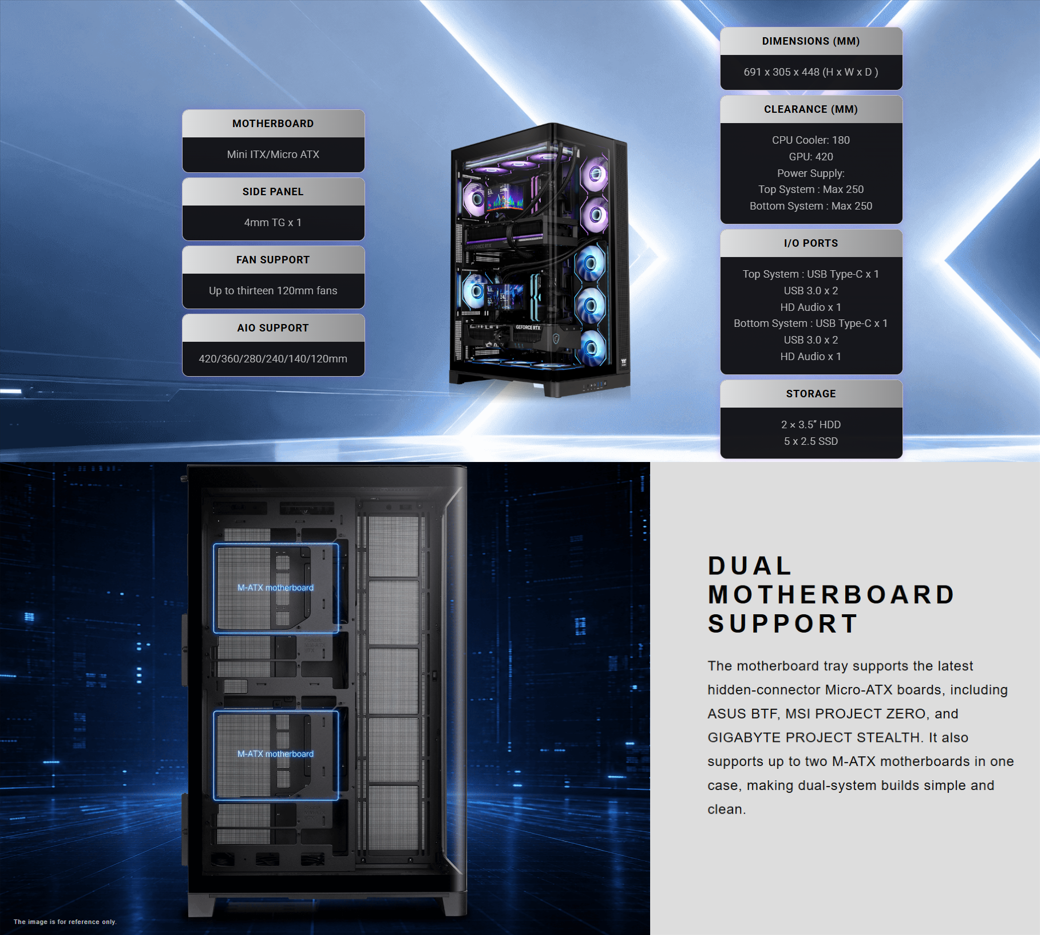

MOTHERBOARDS

Upper System : 9.6” x 9.6” (Micro ATX), 6.7” x 6.7” (Mini ITX)

Lower System: 9.6” x 9.6” (Micro ATX), 6.7” x 6.7” (Mini ITX)

Hidden-Connector Motherboard

9.6” x 9.6” (Micro ATX)

I/O Port

Upper System : USB 3.2 Gen 2 Type-C x 1, USB 3.0 x 2, HD Audio x 1

Lower System : USB 3.2 Gen 2 Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Upper System : Standard PS2 PSU (optional)

Lower System : Standard PS2 PSU (optional)

FAN SUPPORT

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right:

5x 120mm, 4 x 120mm, 3 x 120mm, 2 x 120mm, 1 x 120mm

4 x 140mm, 3 x 140mm, 2 x 140mm, 1 x 140mm

Rear:

1 x 120mm, 1 x 140mm (Upper)

1 x 120mm, 1 x 140mm (Lower)

Bottom:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

RADIATOR SUPPORT

Top(AIO):

1 x 360mm, 1 x 240mm, 1 x 120mm / 1 x 280mm, 1 x 140mm

Right(AIO):

1 x 360mm, 1 x 240mm, 1 x 120mm / 1 x 420mm, 1 x 280mm, 1 x 140mm (2 x 280mm)

Rear(AIO):

1 x 120mm, 1 x 140mm (Upper System) / 1 x 120mm, 1 x 140mm (Lower System)

CLEARANCE

CPU cooler height limitation: 180mm

VGA length limitation: 420mm

PSU length limitation:

Upper System: A/160mm, B/180mm, C/250mm

Lower System: D/180mm, E/250mm
