P/N
CA-1P3-00M1WN-00
Series

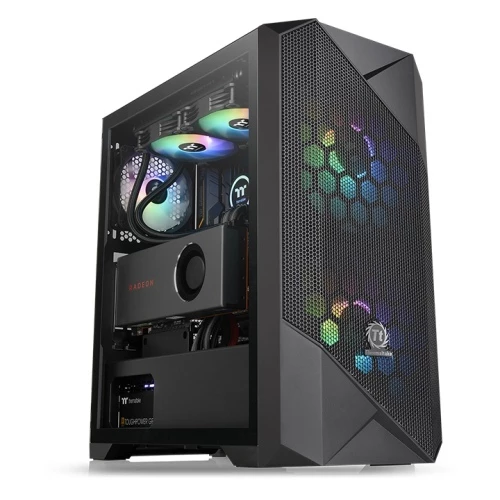

Commander
Model
G33 TG ARGB
CASE TYPE
Middle tower
Dimension (H x W x D)
442 x 225 x 472 mm
(17.4 x 8.85 x 18.58 inch)
NET WEIGHT
7.72 kg / 17.02 lb
PANEL
4mm Tempered Glass x1
Color
Exterior & Interior: Black
MATERIAL
SPCC
COOLING SYSTEM
Front (intake) :
200 x 200 x 30mm Addressable RGB fan
(600rpm, 24dBA) x 1
Rear (exhaust) :
120 x 120 x 25 mm fan
(1000rpm, 16 dBA)
Drive Bays
-Accessible
-Hidden
2 x 3.5“ or 2.5” (HDD Rack); 2 x 2.5” (HDD Bracket)
EXPANSION SLOTS
7 + 2
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port
USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, RGB Switch x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
120mm x 3, 140mm x 2, 200mm x 2
Top:
120mm x 2, 140mm x 2
Rear:
120mm x 1, 140mm x 1
RADIATOR SUPPORT
Front: 280mm x 1 ,360mm x 1
Top: 240mm x 1
Rear: 120mm x 1
CLEARANCE
CPU cooler height limitation: 165mm
PSU length limitation: 160mm(With HDD Rack)
200mm(Without HDD Rack)
VGA length limitation: 300mm
VGA width limitation(Vertically): 45mm
RAM height limitation: 40mm(With radiator series)
