P/N
CA-1V1-00S1WN-01
Series
Divider
Model

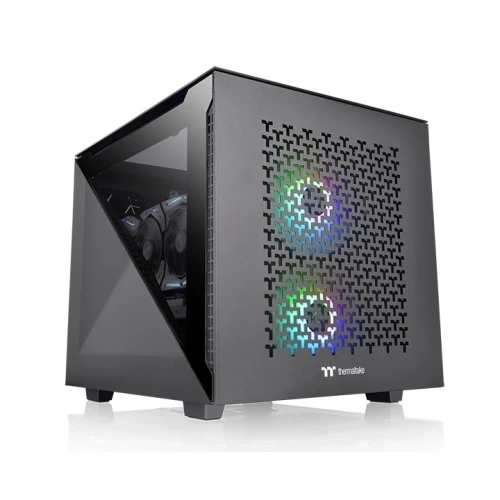

Divider 200 TG Air
CASE TYPE
Micro Case
Dimension (H x W x D)
364.7 x 333.2 x 425.7 mm
(14.4 x 13.1 x 16.8 inch)
NET WEIGHT
8.97 kg / 19.78 lbs.
PANEL
3mm Tempered Glass x 2
Color
Black
MATERIAL
SPCC
COOLING SYSTEM
Front (intake):
200 x 200 x 30 mm standard fan (800rpm, 13dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm fan (1000rpm, 16 dBA) x 1
Drive Bays
-Accessible
-Hidden
3 x 3.5’’, 3 x 2.5’’
or 6 x 2.5”
EXPANSION SLOTS
5
MOTHERBOARDS
6.7” x 6.7” (Mini ITX) , 9.6” x 9.6” (Micro ATX)
I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
1 x 200mm
Right:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Rear:
1 x 120mm, 1 x 140mm
Bottom:
2 x 120mm, 1 x 120mm
RADIATOR SUPPORT
Front:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear:
1 x 120mm
CLEARANCE
CPU cooler height limitation:
185mm
VGA length limitation:
310mm (With 27mm radiator)
340mm (Without radiator)
PSU length limitation:
180mm (With Bottom Fan)
200mm (Without Bottom Fan)
