P/N
CA-1T4-00M6WN-01
Series
Divider
Model

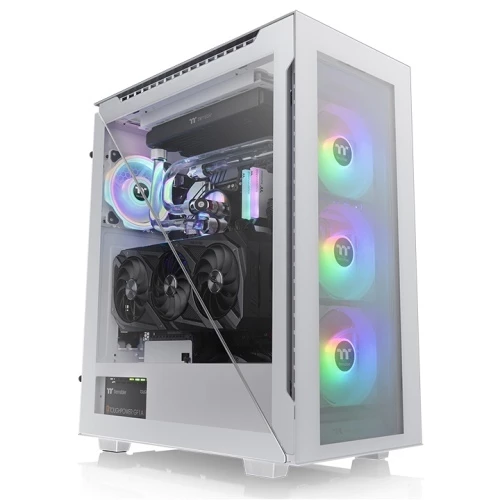

Divider 500 TG Snow ARGB
CASE TYPE
Mid Tower
Dimension (H x W x D)
530 x 230 x 466 mm
(20.9 x 9.1 x 18.3 inch)
NET WEIGHT
10.6 kg / 23.4 lbs.
PANEL
3mm Tempered Glass x 4
Color
White
MATERIAL
SPCC
COOLING SYSTEM
Front(intake):
120 x 120 x 25 mm ARGB fan (1000rpm, 27.2 dBA) x 3
Rear(exhaust):
120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1
Drive Bays
-Accessible
-Hidden
2 x 3.5”, 5 x 2.5”
or 7 x 2.5”
EXPANSION SLOTS
7 (Rotatable Patented Design)
MOTHERBOARDS
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)
I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm
RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 280mm, 1 x 140mm
1 x 240mm, 1 x 120mm
Right
(M/B Side): 1 x 240mm (vertical-installed GPU recommended),
1 x 120mm
Rear:
1 x 120mm
CLEARANCE
CPU cooler max height:
155mm (with one TG and one steel side panel)
170mm (with two TG)
VGA max length:
360mm (with radiator)
390mm (without radiator)
PSU max length:
180mm (with HDD Cage)
220mm (without HDD Cage)
